Concrete Gold® Film Faced Densified Plywood

Concrete Gold®Film Faced Densified Plywood

Film Faced Densified Shuttering Plywood is used Extensively for concrete formworks and is required to have decent load capacity while delivering multiple repetitions in order for it to be cost effective for a builder. Keeping that in mind, we manufacture Concrete Gold® Shuttering Ply to withstand variable load with ease and deliver repetitions more than promised. Here’s listing a few points which demonstrate how Concrete Gold® Plywood differentiates itself from others.

Why Use Concrete Gold® Film Faced Densified Plywood ?

Concrete Gold® Film Faced Densified Shuttering plywood is a product for high-end construction uses. The phenolic film plywood has a coated, glossy surface, which gives the product long life and great value in terms of re-use. This plywood withstands the corrosive action of cement, water and sunlight

Concrete Gold® Film Faced Densified Shuttering Plywood is an innovative concept and is ideal for exposed concrete shuttering & frameworks. These boards are made of best – selected plywood veneers bonded with Phenol Formaldehyde Resin. An external coating of phenolic Polymer Film made in-house with imported craft paper gives a super smooth, uniform surface finish. Concrete Gold® Film Faced Densified Shuttering Plywood film has become the foremost choice of leading quality conscious architects and civil construction engineers.

Each & Every layer of our 34 Kg film faced ply is impregnated with PPTR to ensure higher repetitions. We assure a guarantee of upto 20 repetitions for our 34 kg Concrete Gold® Plywood depending on the method of use.

Test Certificates

TECHNICAL DATA


Specification : IS 4990 as per test method I:S 1734 ( Part 1 to 20 ) - 1983
Sr. No. Properties Unit Standard Value VALUVE Obtained
1 Dimension
Length mm +6, -0. '+ 3.
Width mm +3, - 0. '+1.
Thickness % '+5. +2.9.
2 Squareness % 0.2 0.14.
3 Edge Straightness % 0.2 0.16.
4 Workmanship & Finish As per Clause 7.0. Confirm
5 Bond Adhesive used phenol formaldehyde confirm
to BWP type specification
I.S. 848, 1974		 Confirm
6 Density 0.90 - 1.00 0.93,0.89,0.99
7 Moisture Content % 5 to 15 7.67,8.14,7.45
8 Thickness Swelling % 5 to 15 6
9 Glue Shear strength Kg F.
1) Dry stale Individual value 110 ( MIN )
Average value 135 ( MIN ) 148,172,169,163
2) West state Individual Valuve 80 ( MIN ) 152,121,106,127
Average value 100 ( MIN )
10 Tensile Strenght Kg/ cm 2
1) Along the grains 480 (MIN ) 495
2) Across the grains 340 ( MIN ) 360
3) Total 845 ( MIN ) 855
11 Static bending strenght N / mm 2
1) Along the grains 45 ( MIN )
Individual valuve 50 ( MIN )
2) Across the grains 27 ( MIN ) 31,46,37
Individual valuve 30 ( MIN ) 38
Average value
12 Modules Of Elasticity
1) along the grains
Individual Valuve 6700 7400,7653,8750
Average Valuve 7500 7934.33
2)Across the grains 3600 4450,4100,3970
Individual Valuve 4000 4173.33
Average Valuve
REMARK : Above material meets the specification and is found satisfactory.

Contact us for help

MAHIMA TIMBER TRADERS is committed to provide you Best of the Quality at the most Economical Price.

Contact Us
Our PRODUCT'S RANGE

PRODUCT RANGE

  • Concrete Gold® 30 KGUpto 10 Repetitions.
  • Concrete Gold® 34 KG Upto 15 Repetitions.
  • Concrete Gold® 34 KG
    (SPECIAL BLACK FILM)Upto 20 Repetitions
  • Concrete Gold® 36 KGUpto 25 Repetitions
  • Concrete Gold® 19 MM 50 KGUpto 25 Repetitions
Precautions

NOTE

Our repetitions guarantee is for the Core Bonding strength ( i.e against splitting of plywood ) and against delamination. We do not guarantee against damage of sheets due to slamming or scratching of film due to misuse. The guarantee is only valid when the following precautions are taken while using it:

Cleaning & Oiling

Clean & oil the surface before each use, Recoat surface with Mould Oil before next use.

Do not perform

Do not perform side screwing & nailing on the ply.

Application

Apply sealants such as chlorinated rubber paint at cut edges before use.

Transport Carefully

Transport carefully, do not drag plywood over one another to avoid scratches.

Storing Ply

Store in packs on a flat raised surface in a dry, covered place with free air circulation.

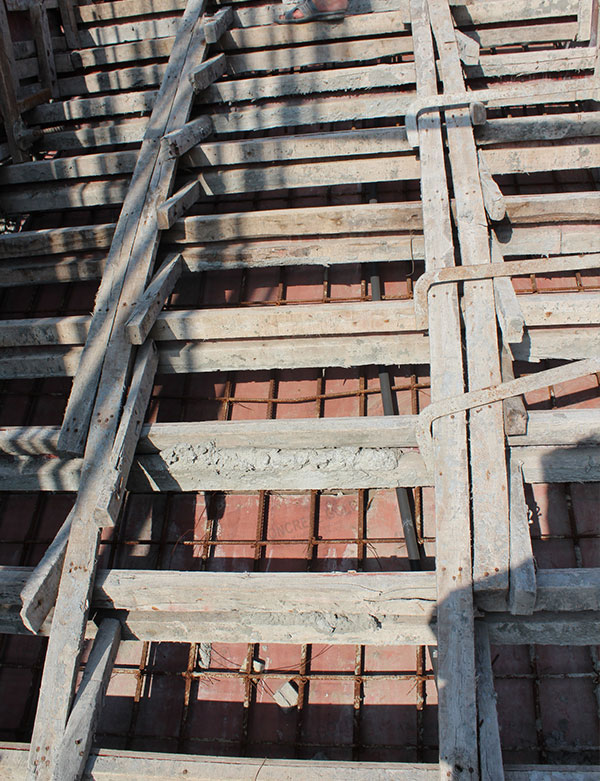

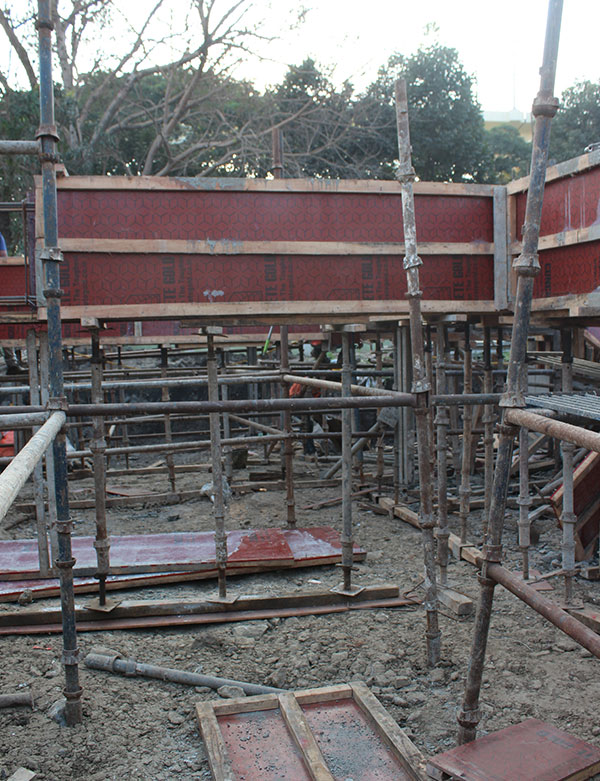

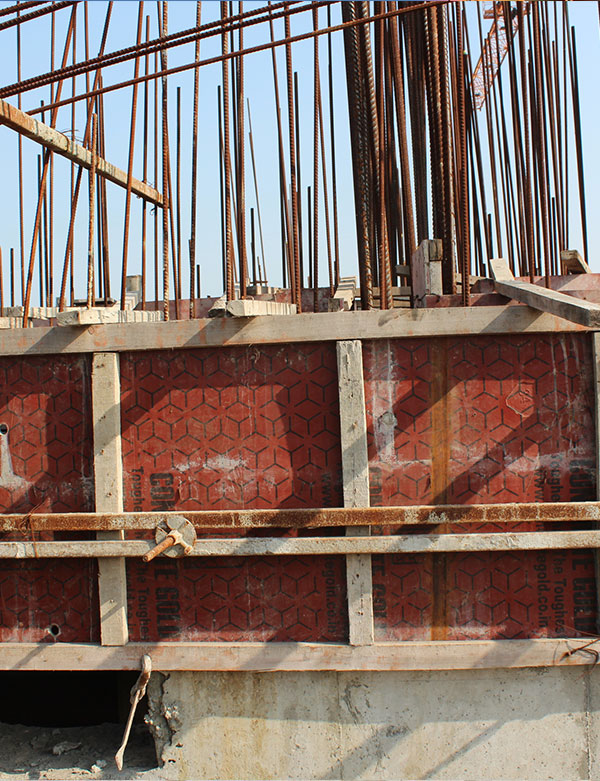

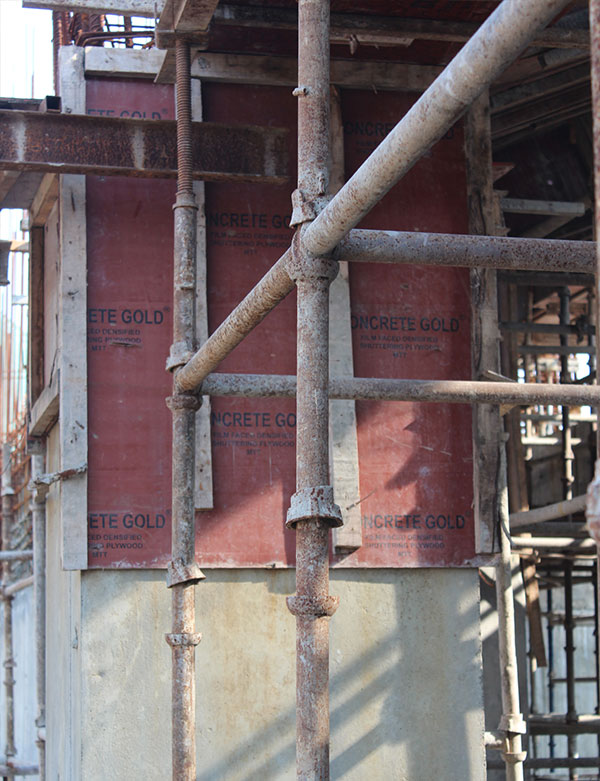

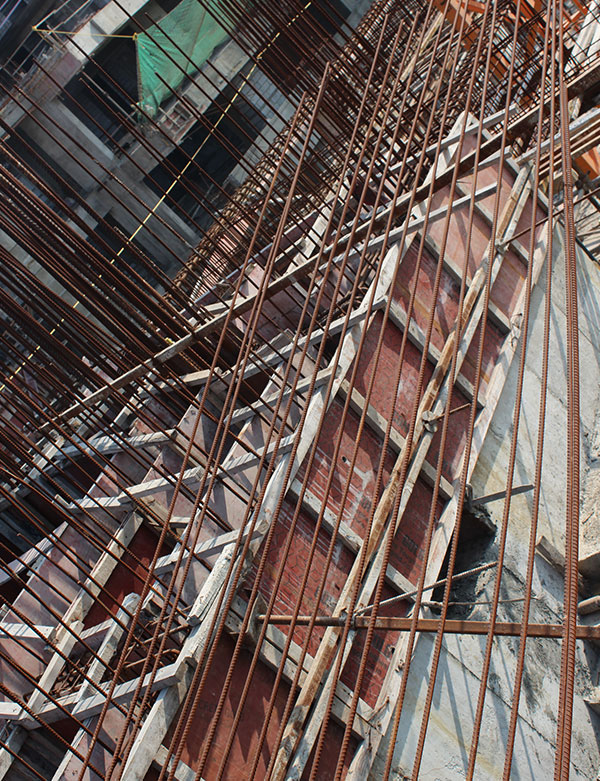

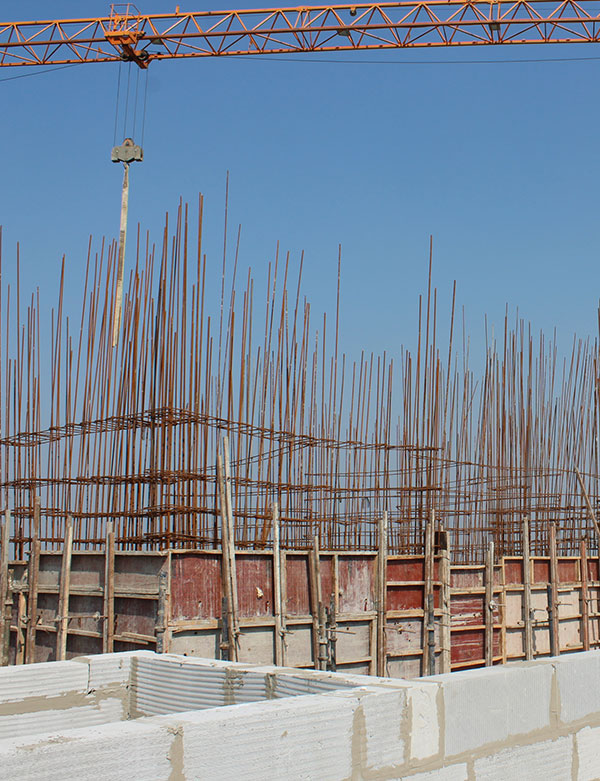

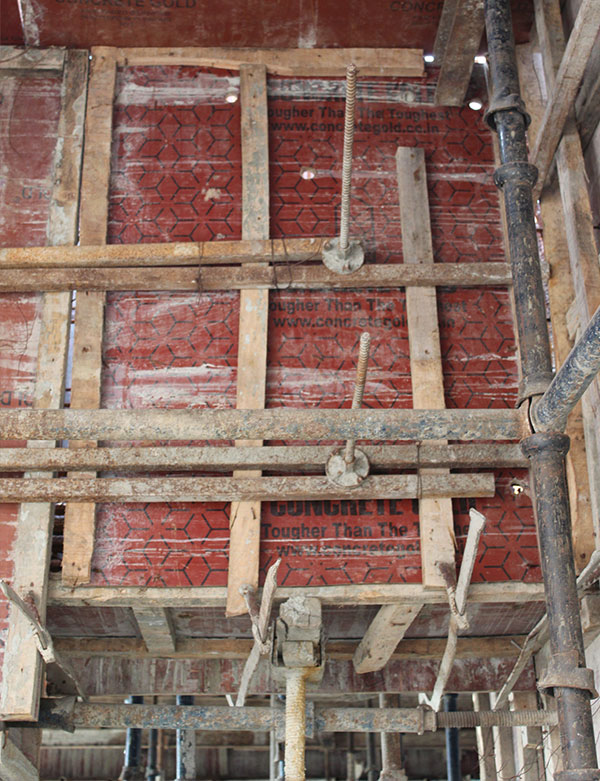

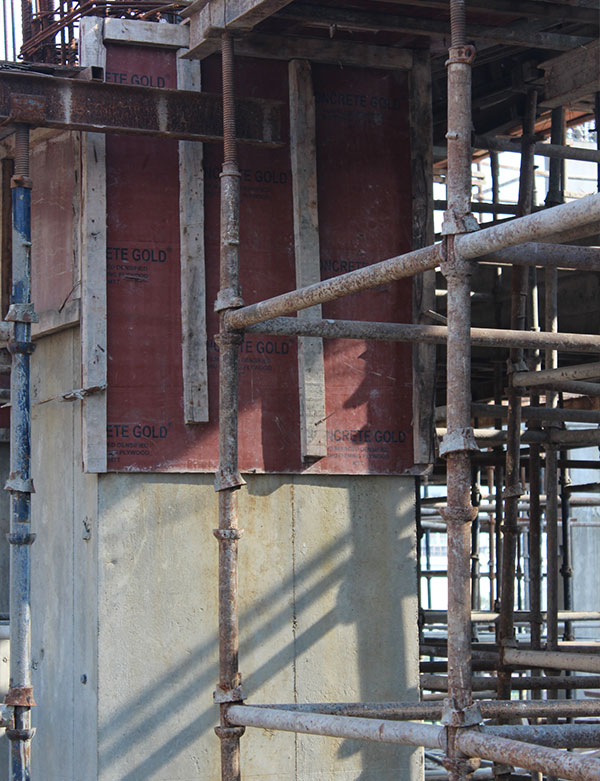

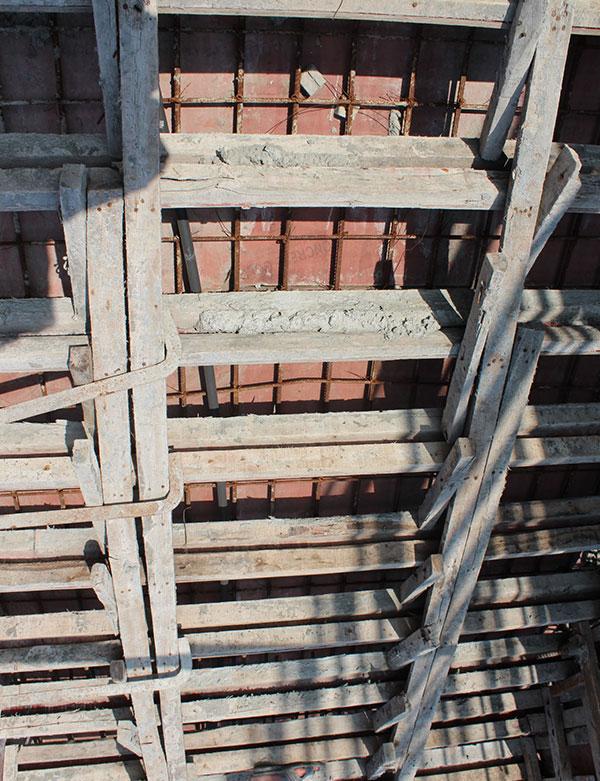

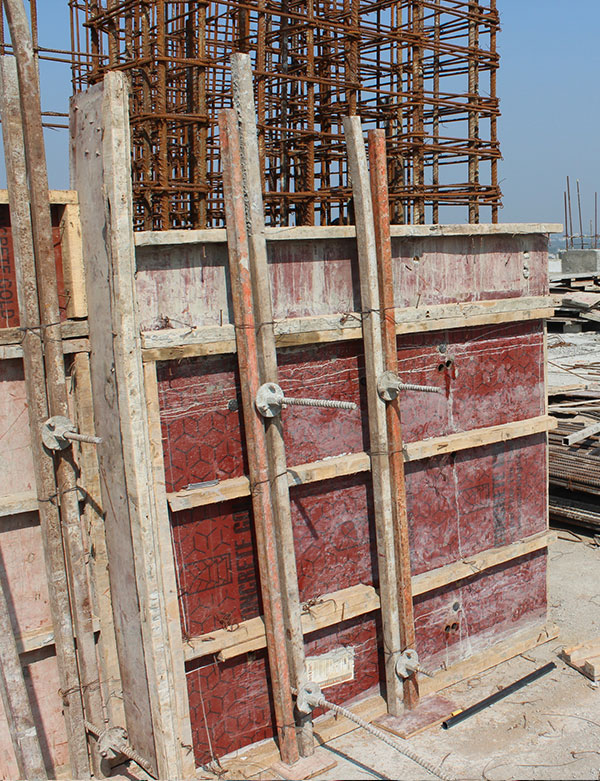

Concrete Gold® Plywood GALLERY

What we have Completed

Our Projects

At MTT, Quality is rather a habit than a challange. For we know you shall accept nothing but the best.

"MAHIMA TIMBER TRADERS is committed to provide you Best of the Quality at the most Economical Price."
All Projects

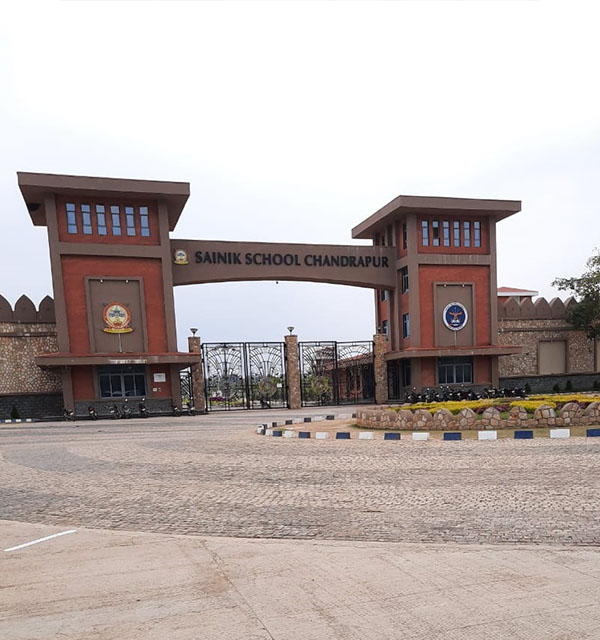

Sainik School – Chandrapur

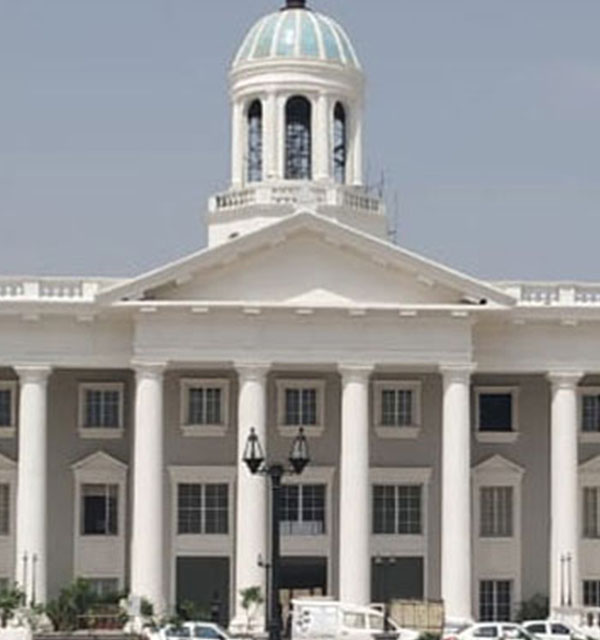

Symbiosis Open Skills International University Nagpur
